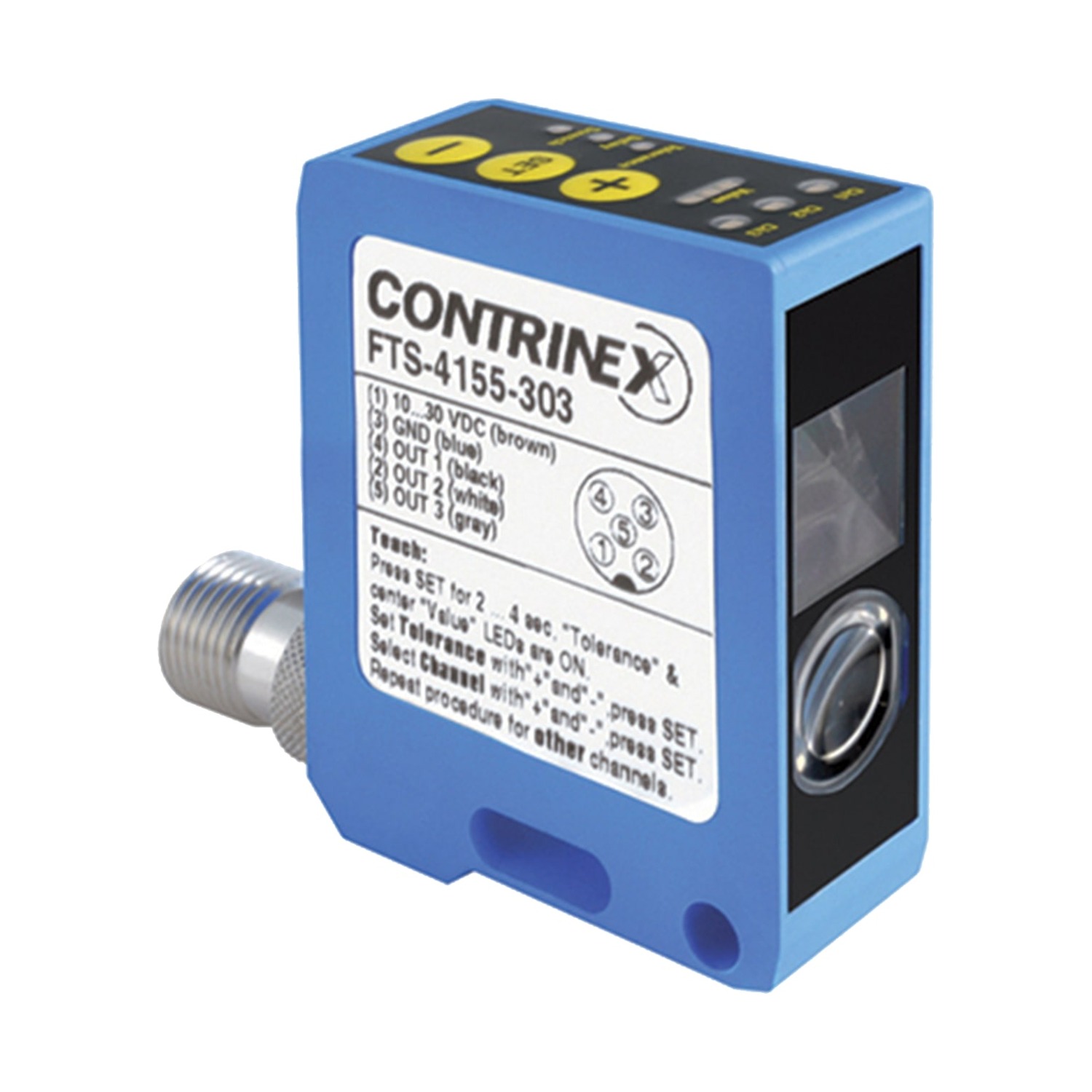

Contrinex FTS-4155-303 White Light Color Sensor
Contrinex FTS-4155-303 White Light Color Sensor
Description
The Contrinex FTS-4155-303 is a white-light color sensor that teaches in up to 3 color channels with independent outputs, letting one sensor distinguish and switch on multiple target colors at once. It holds an operating range of 30 to 40 mm with a positioning tolerance of ±2 mm and resolves red, green and blue signals at 10-bit precision, switching at speeds up to 4 kHz. The M12 connector rotates to 0, 45 or 90 degrees and its pulse delay and stretching are adjustable to match line speed.
- Sensing mode: white-light color sensing, 3 teach channels with independent outputs
- Operating range: 30 to 40 mm ± 2 mm
- Switching frequency: up to 4 kHz
- Output: PNP, light-on, 3 programmable outputs
- Supply voltage: 10 to 30 V DC
- Connection: M12, 5-pin, adjustable at 0, 45 or 90 degrees
- Temperature range: -5 to 55 °C
- Enclosure rating: IP67
Specifications
| Distributed By | Seltrol, Sensors Incorporated |
|---|---|
| Brand | Contrinex |
| Manufacturer Part Number | FTS-4155-303 |
| Selling Unit | Each |
