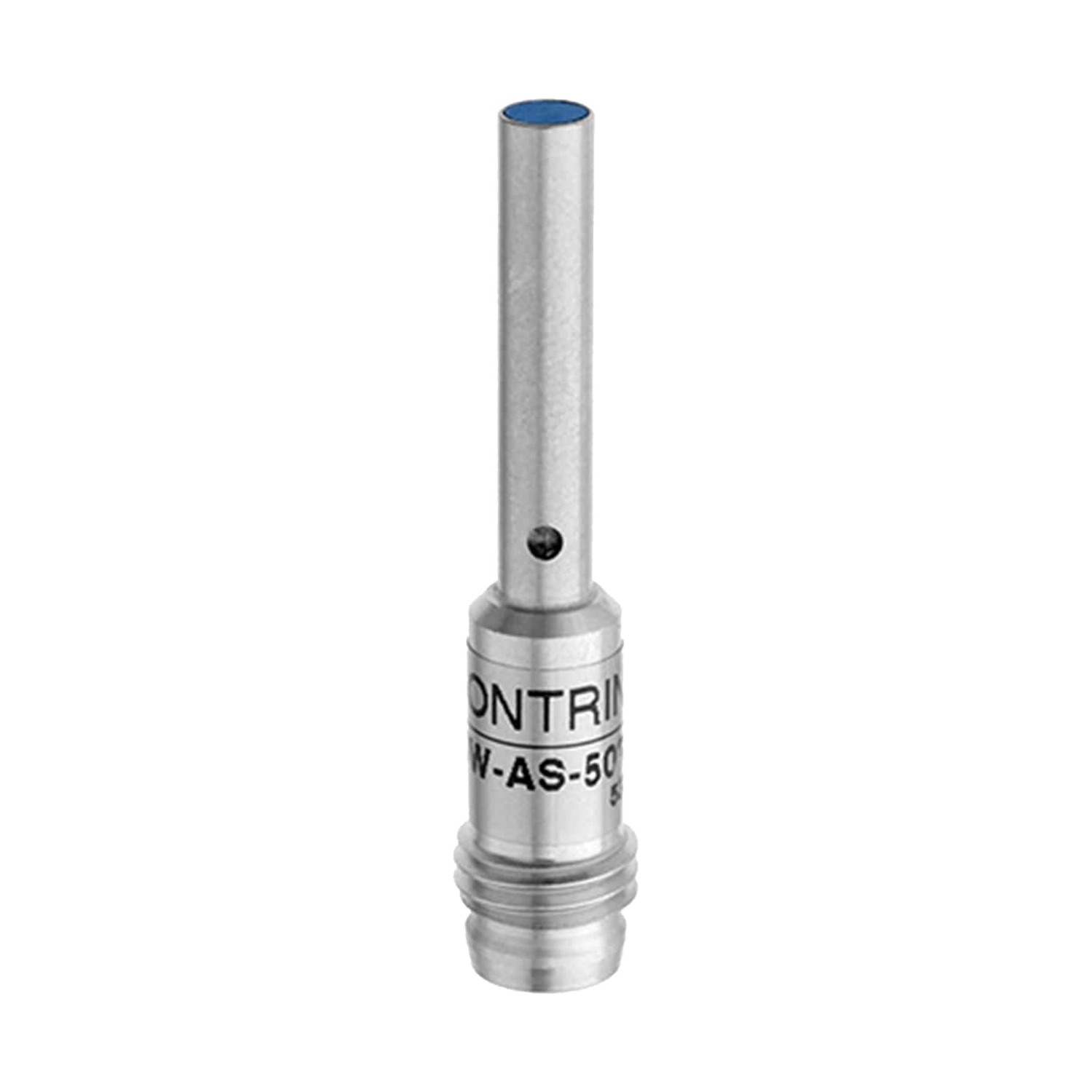

Contrinex DW-AS-503-04 Inductive Proximity Sensor
Contrinex DW-AS-503-04 Inductive Proximity Sensor
Description
The Contrinex DW-AS-503-04 is a miniature 4 mm inductive proximity sensor from the standard 500 series, built for very tight installation envelopes. It detects metal targets and switches a PNP normally-open output over an IO-Link interface for short-range part detection in compact fixtures. The nickel silver housing is rated IP67 for standard industrial duty.
- Sensing mode: inductive, semi-flush mounting
- Sensing distance: 2.5 mm
- Supply voltage: 10 to 30 V DC
- Switching frequency: 800 Hz
- Output: PNP, normally open (NO)
- Communication: IO-Link
- Connection: 3-pin M8 quick-disconnect
- Housing: 4 mm diameter x 38 mm body, IP67
Specifications
| Distributed By | Seltrol, Sensors Incorporated |
|---|---|
| Brand | Contrinex |
| Manufacturer Part Number | DW-AS-503-04 |
| Selling Unit | Each |
