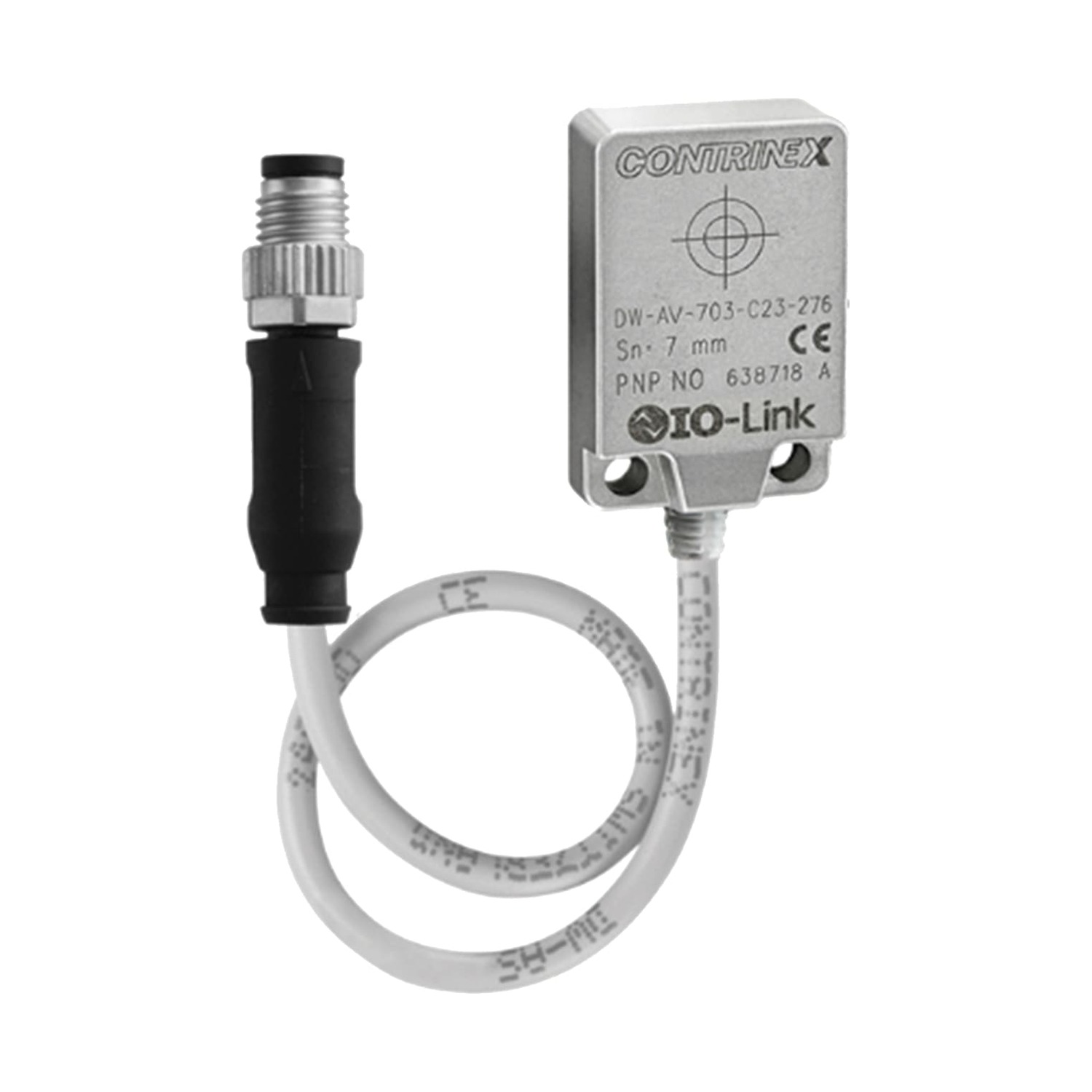

Contrinex DW-AV-703-C23-276 Inductive Proximity Sensor
Contrinex DW-AV-703-C23-276 Inductive Proximity Sensor
Description
The Contrinex DW-AV-703-C23-276 is a rectangular inductive proximity sensor in a 32 x 20 x 8 mm flat stainless steel housing, part of the “Full Inox” 700 series. It detects metal targets and switches a PNP normally-open output over an IO-Link interface, and its flat, low-profile body suits mounting where a cylindrical barrel will not fit, such as on a tooling plate or narrow bracket. The all-stainless housing carries an IP68/IP69K rating for wash-down and harsh-environment duty, and it is UL listed.
- Sensing mode: inductive, flush mounting
- Sensing distance: 7 mm
- Supply voltage: 10 to 30 V DC
- Switching frequency: 180 Hz
- Output: PNP, normally open (NO)
- Communication: IO-Link
- Connection: 3-pin M8 quick-disconnect
- Housing: 32 x 20 x 8 mm rectangular stainless steel, IP68 and IP69K
Specifications
| Distributed By | Seltrol, Sensors Incorporated |
|---|---|
| Brand | Contrinex |
| Manufacturer Part Number | DW-AV-703-C23-276 |
| Selling Unit | Each |
