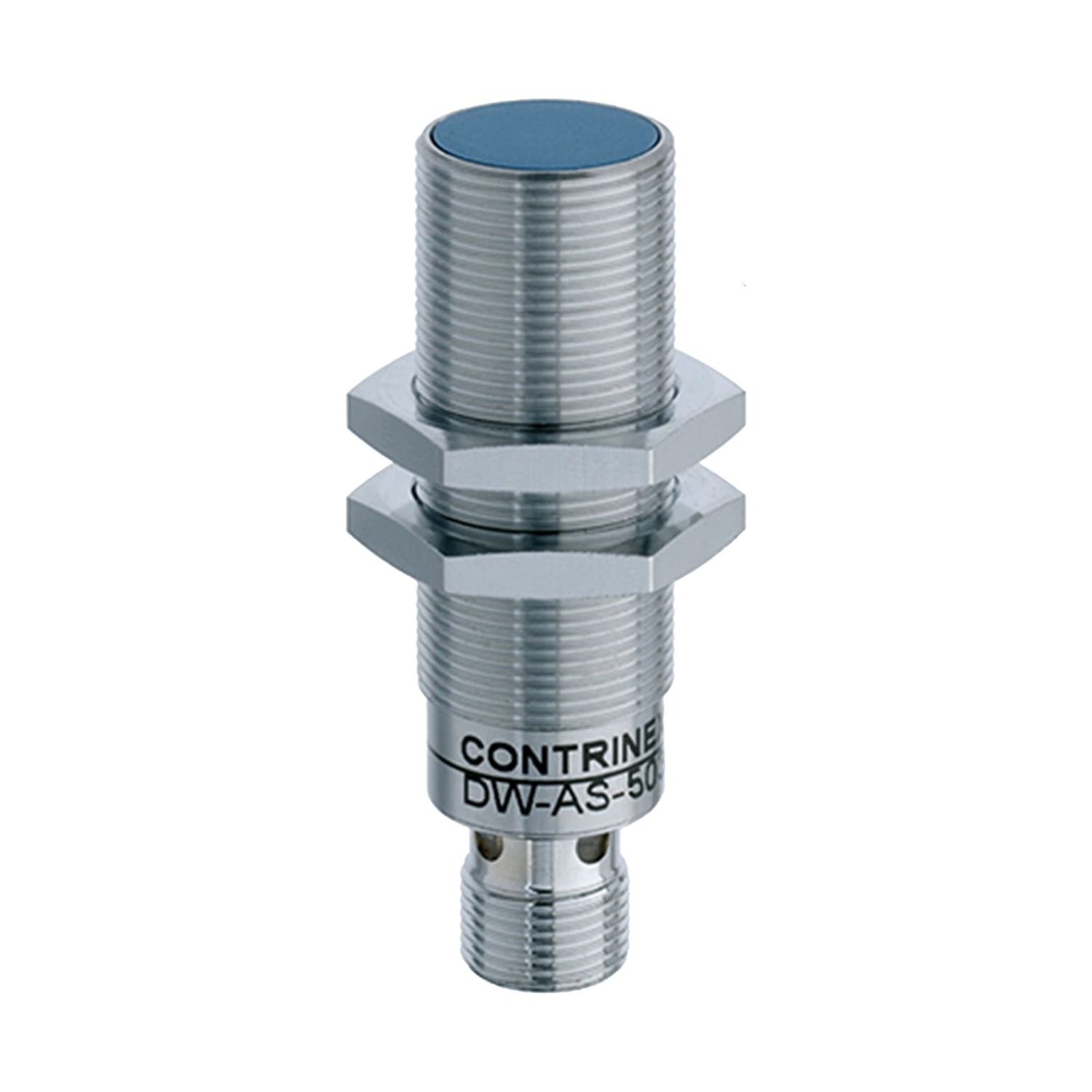

Contrinex DW-AS-623-M18-002 Inductive Proximity Sensor
Contrinex DW-AS-623-M18-002 Inductive Proximity Sensor
Description
The Contrinex DW-AS-623-M18-002 is an 18 mm flush-mount inductive proximity sensor from the Classics 600 series. It detects metal targets and switches a PNP normally-open output over an IO-Link interface, and its flush sensing face allows embedding in a metal fixture in space-constrained installations. The nickel-plated brass housing is rated IP67 for standard industrial duty.
- Sensing mode: inductive, flush mounting
- Sensing distance: 8 mm
- Supply voltage: 10 to 30 V DC
- Switching frequency: 1.5 kHz
- Output: PNP, normally open (NO)
- Communication: IO-Link
- Connection: 4-pin M12 quick-disconnect
- Enclosure rating: IP67
Specifications
| Distributed By | Seltrol, Sensors Incorporated |
|---|---|
| Brand | Contrinex |
| Manufacturer Part Number | DW-AS-623-M18-002 |
| Selling Unit | Each |
