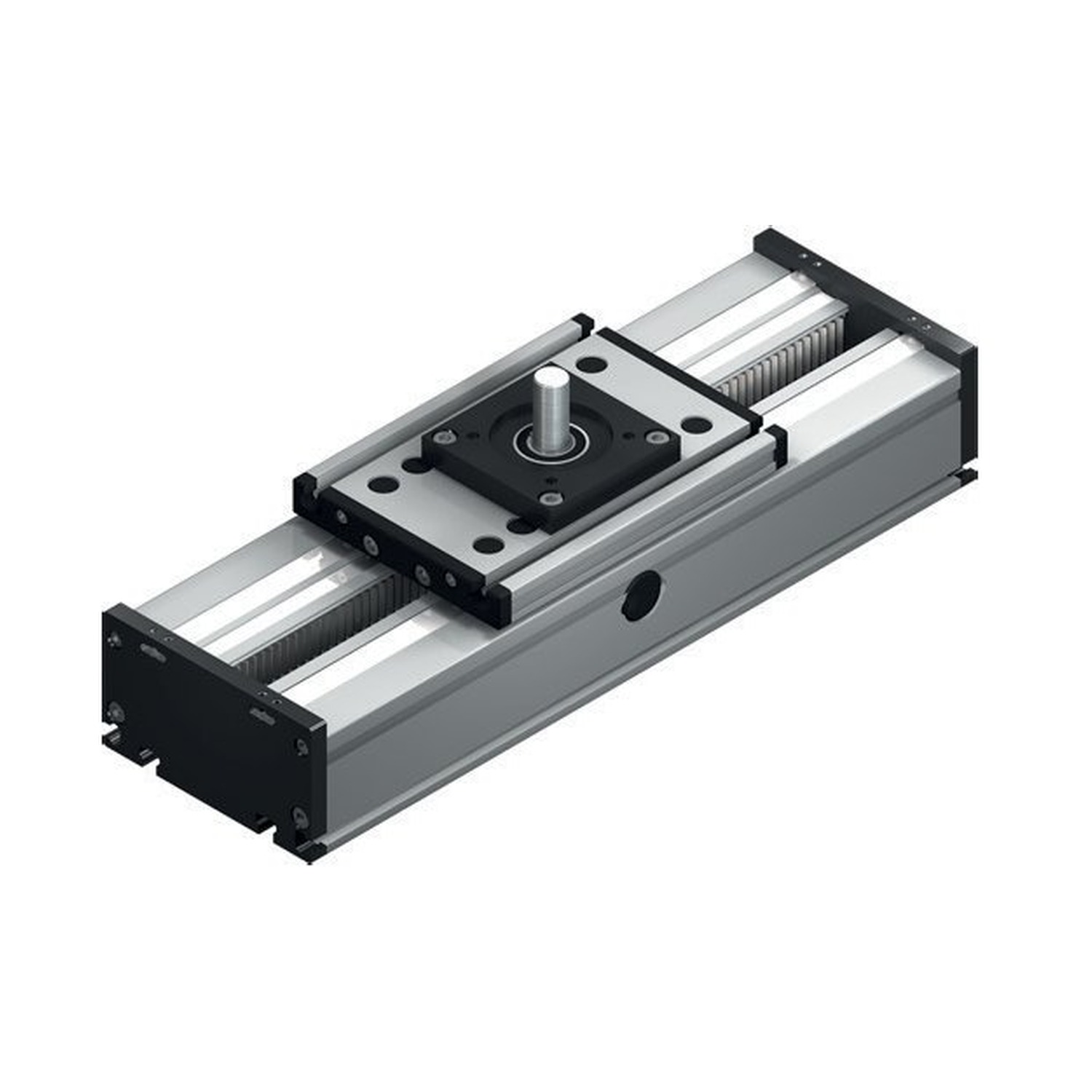

IMI Norgren DSZA Series Linear Axis Actuator
IMI Norgren DSZA Series Linear Axis Actuator
Description
Rack and Pinion driven Linear Axis range with a rectangular Aluminum profile and integrated, hardened steel guide rods.
- Twin integrated rail guides ensure this range is suited to
heavy duty applications with heavy loads
- The carriage is driven by a pinion on a high precision rack
- The pinion is equipped with maintenance-free ball bearings
- The rack and pinion system is suitable for highly dynamic servo operation and ideal for lifting applications
- Multiple units can be assembled in series to achieve extended strokes
For Heavy Duty Industrial Applications
This unit consists of a rectangular aluminum profile with 2 integrated rail guides. The carriage is driven by a pinion on a high precision rack. The rack and pinion system is suitable for highly dynamic servo operation and ideal for lifting movements. The pinion is equipped with maintenance-free ball bearings. The rack is lubricated by a toothed felt wheel. With this series, multi-part assembled units with long strokes can be realized.
- Frame Sizes: 160 – 200 mm
- Max Length: Up to 6 m (standard)
- Speed: 5 m/s
- Max Payload: 3800 N
- Accuracy: ±0.1 mm
Specifications
| Distributed By | Accu Tech USA |
|---|---|
| Manufacturer Name | IMI Norgren |
| Series | DSZA |
| Selling Unit | Each |
| Country of Origin | Germany |
| Color | Silver |
| Material | Aluminum |
| Drive Mechanism | Rack & Pinion |
