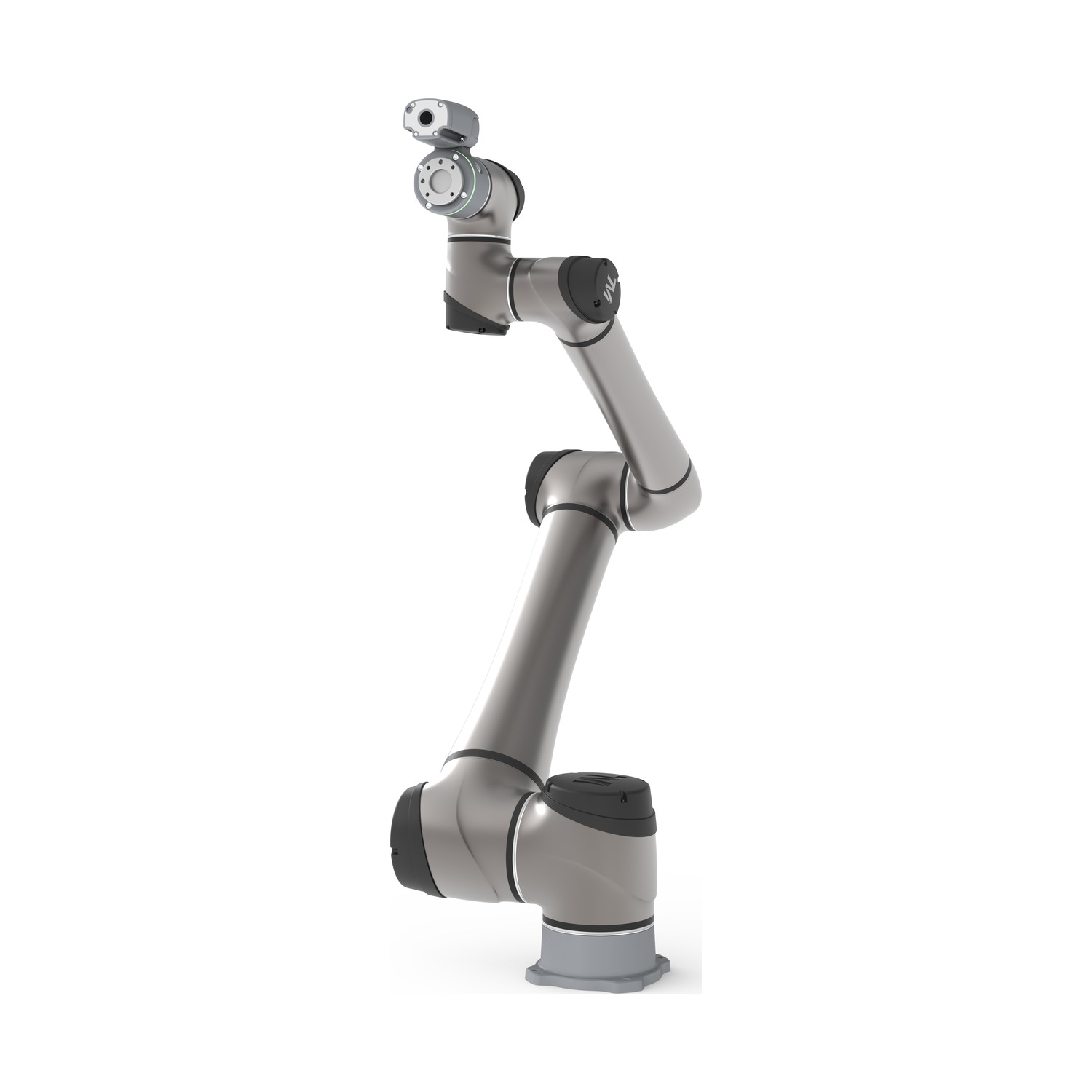

The Techman Robot TM20S is a heavy-payload model in the TM AI Cobot S Series, combining a 20 kg payload with a 1300 mm reach to scale collaborative automation to more demanding tasks. Built on Techman’s AI-native collaborative platform, it brings integrated machine vision and intuitive programming to high-volume pick-and-place, heavy machine tending, packaging and palletizing.

Key specifications:
• Maximum payload: 20 kg
• Maximum reach: 1300 mm
• Repeatability: +/- 0.05 mm
• Degrees of freedom: 6 rotating joints
• Maximum TCP speed: 4.5 m/s
• Approximate arm weight: 33.3 kg

Platform and software:
• Built-in AI vision system offering classification, object detection, segmentation, anomaly detection and AI OCR, plus 1D/2D barcode reading and an auto-focused 5 MP color camera
• Programmed with TMflow flowchart-based software, with TMscript and TMcraft available for scripting and advanced developer control
• Communicates over RS-232/RS-422/RS-485, Ethernet and Modbus TCP/RTU, with optional PROFINET, EtherNet/IP, EtherCAT and CC-Link network cards
• Control box I/O: 16 digital in / 16 digital out and 2 analog in / 2 analog out; tool I/O: 3 digital in / 3 digital out
• IP65-rated robot arm and IP54-rated control box; operating temperature 0 to 50 C; ISO Class 3 cleanliness
• Certified to TUV ISO 13849-1, ISO 10218-1 and ISO/TS 15066, plus SGS UL1740 and CAN/CSA Z424-14; NSF/ANSI 169 and SEMI S2 available as options

Typical applications:
• High-volume pick-and-place, heavy machine tending, packaging and palletizing

Distributed By	Accu Tech USA
Manufacturer Name	Techman Robot
Series	TM20S
Selling Unit	Each
Country of Origin	Taiwan
Color	Black
Subtype	Collaborative Robot (Cobot)
Input Voltage	200-240V AC
Maximum Payload (lb)	44.09
Maximum Payload (kg)	20.00
Maximum Reach (mm)	1,300.00
Degrees of Freedom	6-Axis
Repeatability	± 0.05 mm
Integrated Vision System	Yes
IP Rating	IP65
