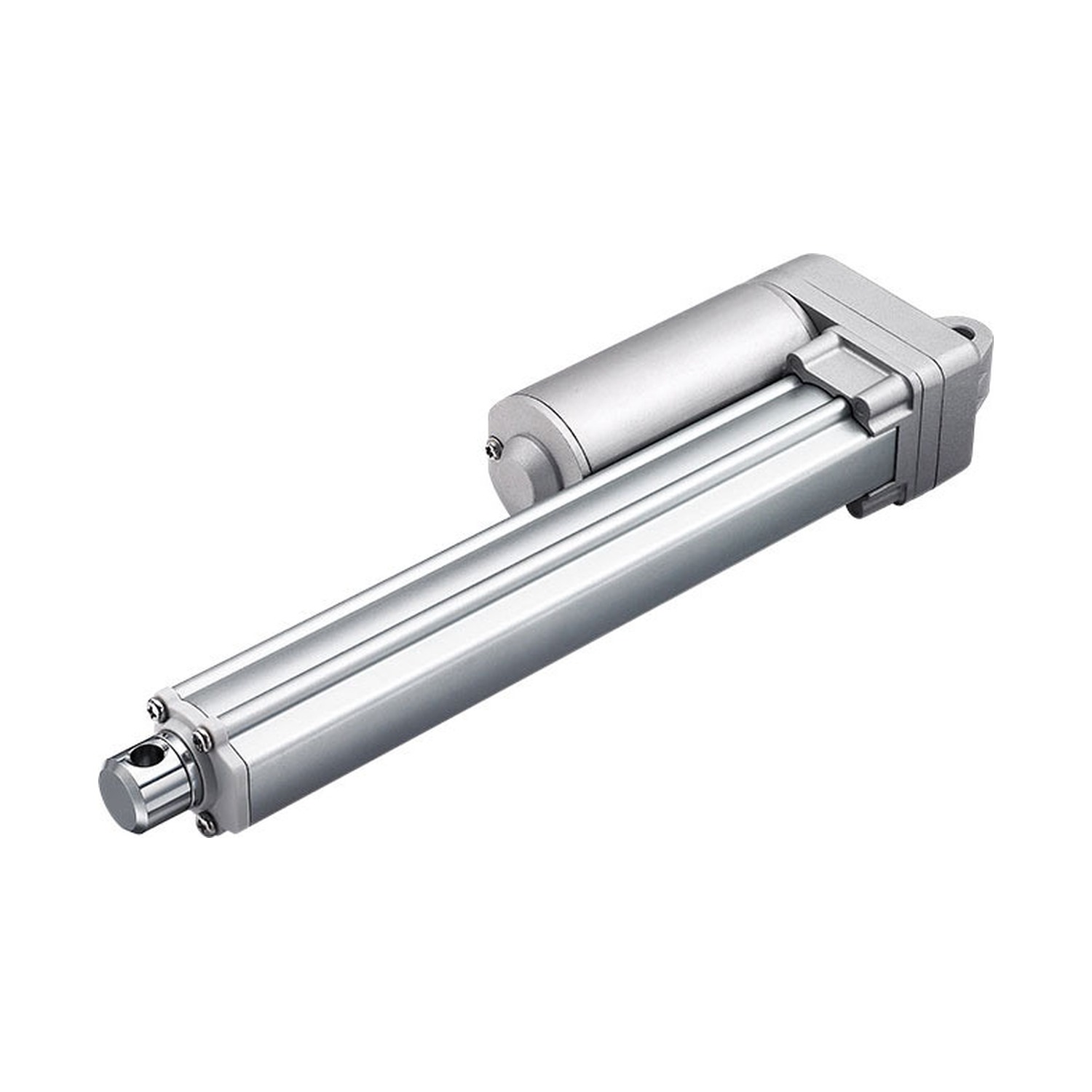

TiMotion TA2 Series Actuator
TiMotion TA2 Series Actuator
Description
TA2 series linear actuator is compact, robust and capable of performing well in certain outdoor environments.
TA2 series linear actuator is compact, robust and capable of performing well in certain outdoor environments. This linear actuator is perfect for use in small spaces where force or capability cannot be sacrificed. Options include feedback sensors, signal sending limit switches and 90 degree clevis mounting. Industry certifications for the TA2 linear actuator include IEC60601- 1, ES60601-1, and EMC.
General Features
• Max. load: 1,000N (push/pull)
• Max. speed at max. load: 7.6mm/s
• Max. speed at no load: 67.5mm/s
• Retracted length: ? Stroke + 105mm (without output signals)
• IP rating: IP66D
• Certificate: IEC60601-1, ES60601-1, EMC
• Stroke: 20~1000mm
• Options: POT, Reed, Hall sensors
• Voltage: 12, 24, 36, 48V DC; 12, 24, 36, 48V DC (PTC)
• Color: Silver
• Operational temperature range: +5?C~+45?C (Load < 500N); -25?C~+65?C (Load ? 500N)
• Operational temperature range at full performance: +5°C~+45°C• Compact size for limited space
Specifications
| Distributed By | Accu Tech USA |
|---|---|
| Manufacturer Name | TiMotion |
| Series | TA2 |
| Selling Unit | Each |
| Country of Origin | Taiwan |
| Color | Silver |
| Material | Aluminum |
| Drive Mechanism | Ball Screw |
