Description

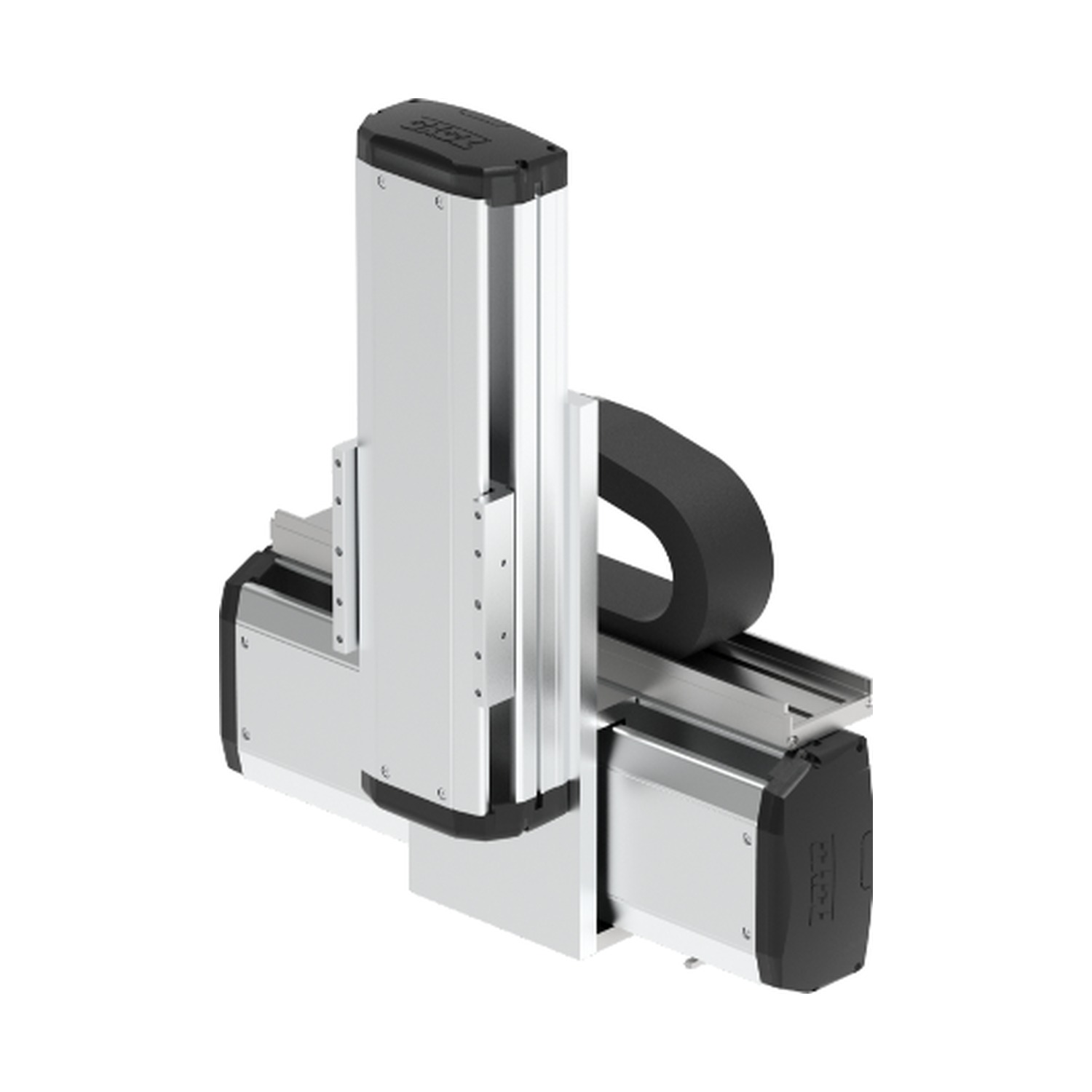

Multi Axis Ball Screw Type Actuator can be used and assembled in your coating device application.
- XZ Type 2 Axis
- X axis for horizontal movement and Z axis for vertical movement
- ETH17 & ETH14 Connected
- Maximum Speed: 1000 mm/sec (X Axis) ; 500 mm/sec (Z Axis)
- Available Stroke Lengths: 100-1250 mm (X Axis) ; 50-550 mm (Y Axis)
Multi Axis Ballscrew Type Actuators come assembled in the following four types:
- A (Arm) Type – The type with moving Y Axis Carriage
- G (Gantry) Type – The type with a guide railing at the end of Y Axis for support
- P (Moving Arm) Type – The type with vertically moving Y Axis type
- F (XZ) Type – The type with combination of X axis for horizontal movement and Z axis for vertical movement.
Along with various mounting positions available by arm variation type, each Multi Axis Ballscrew Actuator (minus the F Type) has two or three axis combinations. The XYTH Series offers a combination of ballscrew actuators linked together to perform at a highly sophisticated and efficient movement patterns. These Multi Axis systems come assembled with a high precision Rolled Ballscrew – Accuracy class C7 – with a preloaded ball nut. It is supported by precision grade recirculating Linear Guides with preloaded carriages to ensure accuracy and stability. All our actuators come compete with Motor Adaptor Plate and Coupling! This is all included in the price of the actuator. In addition, we offer limit switches that can be mounted on the unit for precise motion control. Our cover plate offers a flush enclosed unit that can prevent pinch points. Stroke lengths can be customized as well as additional carriages.
Application Examples:
- Piling Device for Circuit Boards
- Screw-Removal Device
- Pick-and-Place Device for PCB
- Spray Coating Mobile Device
- 3-Dimensional Metal Finishing Device
Please contact our Application Department for assistance in sizing your Linear Actuator.
Specifications
| Distributed By | Accu Tech USA |
|---|---|
| Manufacturer Name | TOYO Robotics |
| Series | XYTH760-F |
| Selling Unit | Each |
| Country of Origin | Taiwan |
| Color | Gray |
| Subtype | Cartesian Robot |
| Maximum Payload (kg) | 22.00 |
| Degrees of Freedom | 2-Axis |
| Repeatability | ±0.005 mm |
