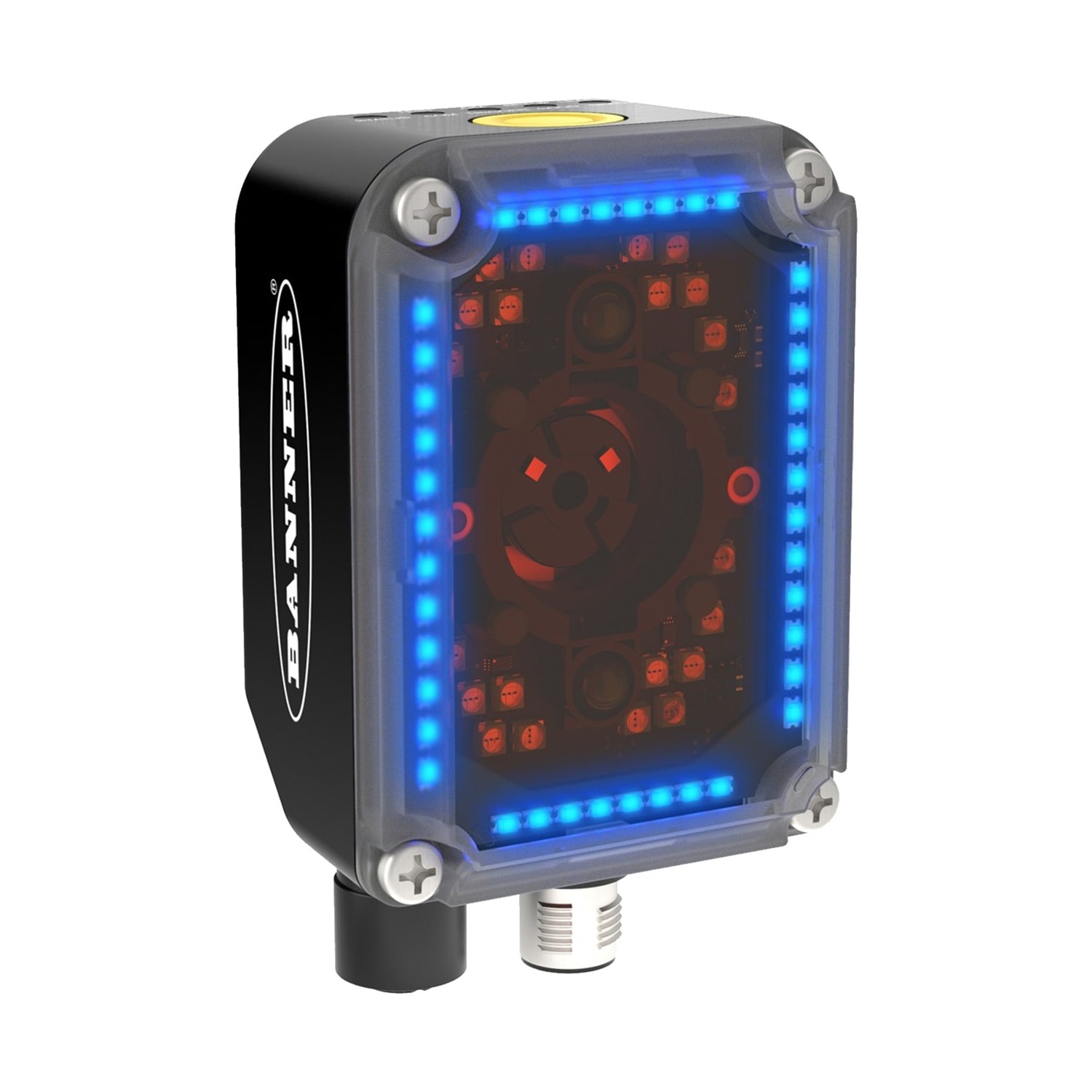

Banner Engineering ABR7000 Imager-Based Barcode Reader

Selling Unit Each

Description

The Banner Engineering ABR7000 is the premium tier of Banner’s imager-based barcode reader line, built for long read distances and difficult direct-part-mark (DPM) codes on machined metal and electronics. It offers longer focal lengths, up to 16 mm, with Liquid Lens autofocus models that compensate for distance automatically, multicolor DPM lighting that combines bright-field and low-angle illumination, and ID-NET networking that links up to 32 readers for multi-head inspection. Resolution options run up to 2 MP for demanding code and text reads.

Function: premium-tier imager-based barcode reader for long-range and DPM code reading
Resolution: 1.3 MP (1280 x 1024) or 2.0 MP (1600 x 1200)
Lens: 6, 9, 12, or 16 mm, manual focus or Liquid Lens autofocus
Lighting: red, white, red polarized, or multicolor DPM (bright-field and low-angle)
Communication: EtherNet/IP, Modbus TCP, PROFINET, serial (RS232/RS422)
Networking: ID-NET, up to 32 readers
Housing rating: IP67 (with IP67-rated cabling)
