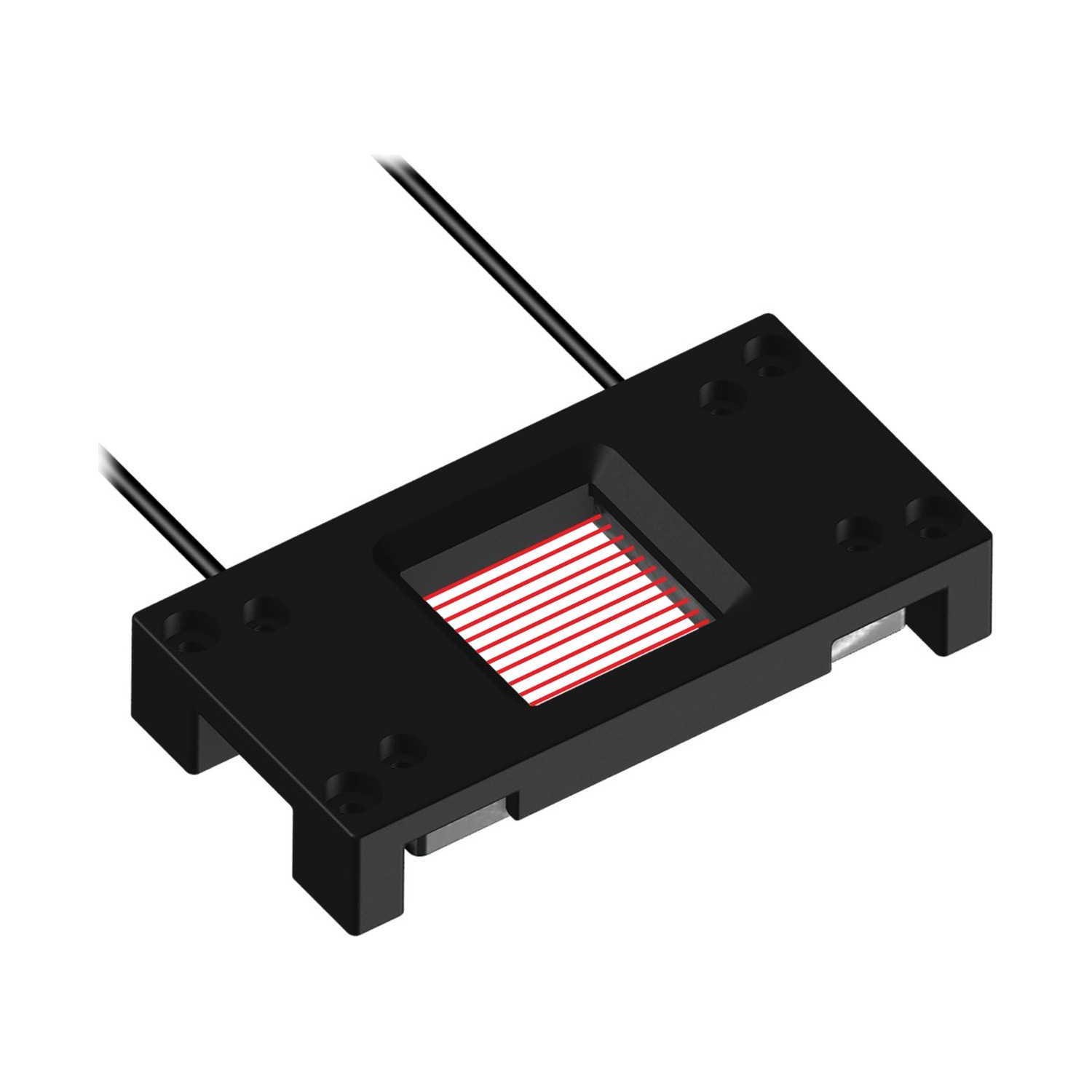

Banner Engineering PFCVA-25X25-S Fiber Optic Sensor Array (25 x 25 mm, Opposed Mode)
Banner Engineering PFCVA-25X25-S Fiber Optic Sensor Array (25 x 25 mm, Opposed Mode)
Description
The Banner Engineering PFCVA-25X25-S is a plastic fiber optic sensor array built for opposed-mode photoelectric sensing of small parts. Two 2 m fiber bundles are fixtured into a 25 x 25 mm rectangular array so an emitter and receiver amplifier can look across a slot or opening to catch small objects passing through it. The array format lets the sensing zone conform to odd-shaped openings that a single fiber pair could not cover.
- Sensing mode: opposed-mode array
- Sensing end size: 25 x 25 mm
- Core diameter: 16 x 0.25 mm per fiber
- Fiber length: 2 m
- Minimum bend radius: 5 mm
- Termination: T5
- Maximum ambient temperature: 70 °C
Specifications
| Distributed By | Seltrol, Sensors Incorporated |
|---|---|
| Brand | Banner Engineering |
| Series | Array & Slot Fiber Optics |
| Manufacturer Part Number | PFCVA-25X25-S |
| Selling Unit | Each |
