Murrelektronik Emparro Power Supply

Selling Unit Each

Description

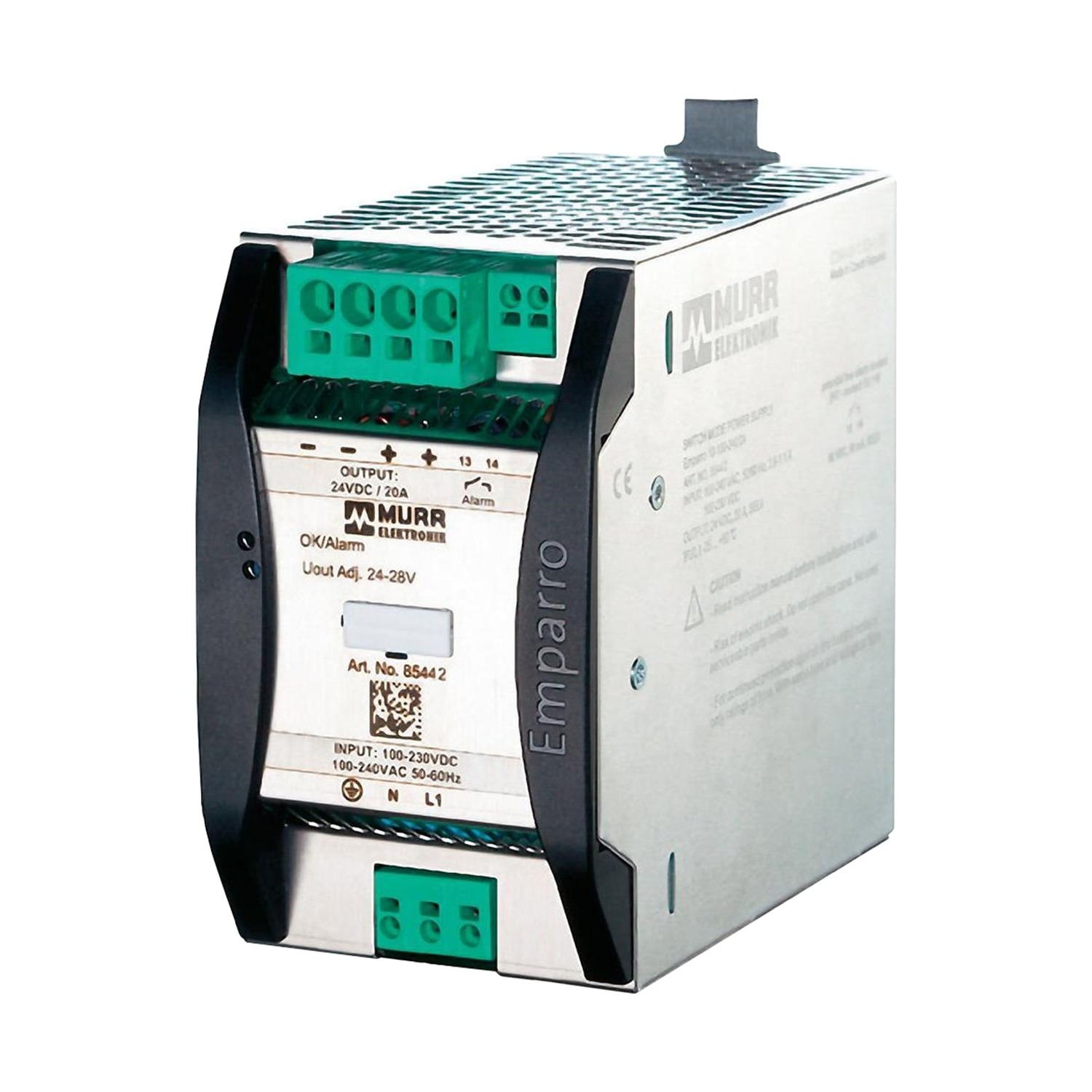

The Murrelektronik Emparro is a DIN-rail switched-mode power supply line for control cabinets, converting incoming AC to regulated low-voltage DC for PLCs, sensors and actuators. It is available in single-phase and three-phase input versions with an adjustable output, so the family covers both small local loads and larger cabinet-wide power budgets. Both lines include power limiting, a boost function for high inrush loads, and a relay alarm contact.

Output voltage (1-phase): adjustable 12 to 15 V DC, 24 to 28 V DC, or 48 to 56 V DC
Output current (1-phase): up to 10 A at 12 V, 5 to 20 A at 24 V, 2.5 to 10 A at 48 V
Input voltage (1-phase): 85 to 265 V AC / 90 to 250 V DC
Output voltage (3-phase): adjustable 24 to 28 V DC
Output current (3-phase): 5, 10, 20 or 40 A nominal
Input voltage (3-phase): 3 x 324 to 572 V AC / 450 to 745 V DC
Efficiency: up to 95 percent
Mounting: DIN rail
