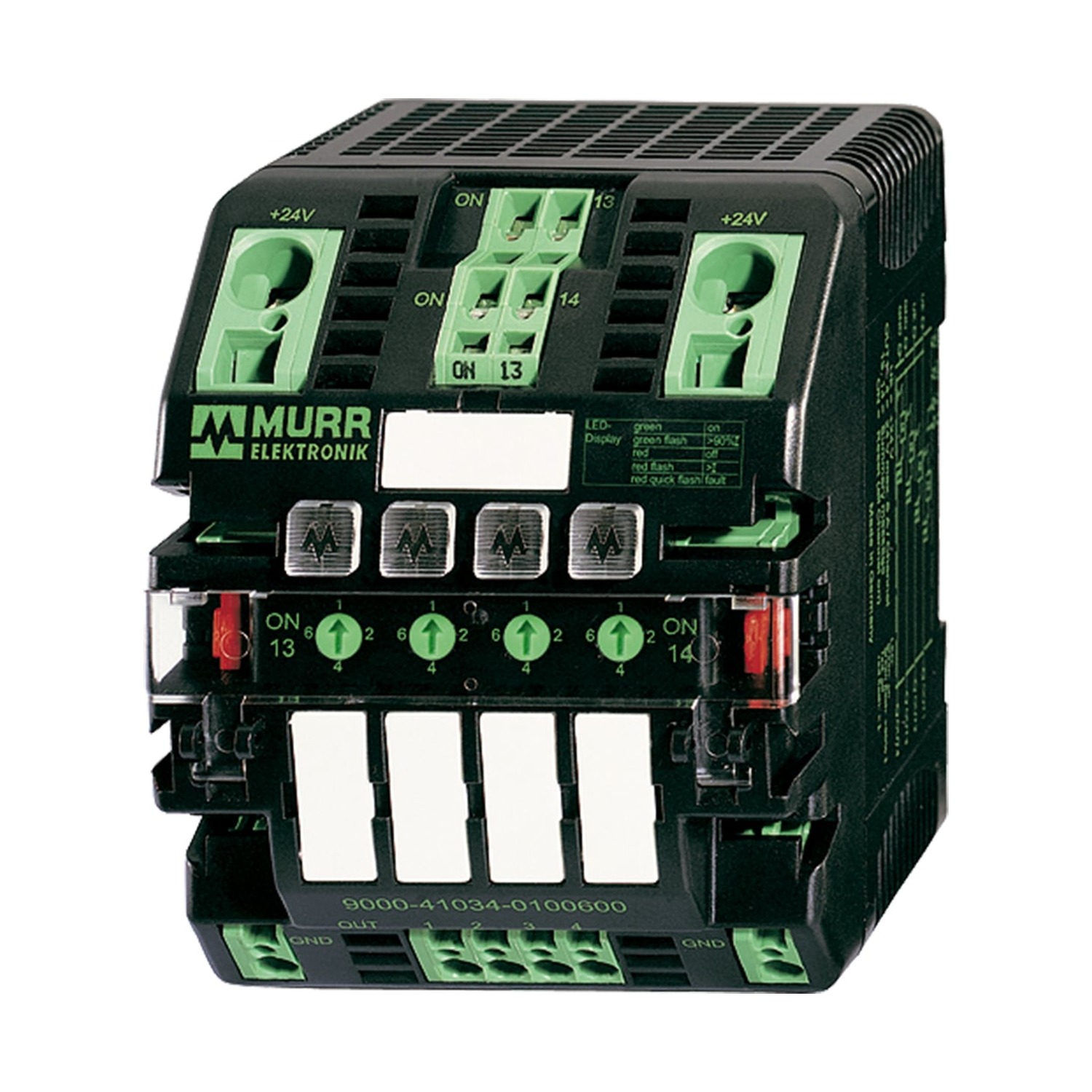

Murrelektronik MICO Electronic Circuit Protection
Murrelektronik MICO Electronic Circuit Protection
Description
The Murrelektronik MICO family provides electronic circuit protection for 24 V DC control cabinet distribution, replacing conventional fuses with resettable, selectable-amperage channels that trip and signal before a short or overload takes down the whole supply. Depending on the model, a MICO module offers 2, 4 or 8 independently protected channels, and an LED plus group alarm contact reports load status so a fault can be traced without opening the panel.
- Function: selectable-amperage electronic circuit protection
- Channels: 2, 4 or 8, depending on model
- Selectable amperage: from 1 A up to 10 A per channel, depending on model
- Input voltage: 24 V DC (MICO Fuse variant also supports 0 to 250 V AC/DC)
- Diagnostics: LED load indication (green normal, blinking green at 90 percent load, blinking red on fault), group alarm contact
- Mounting: spring-clamp terminals
Specifications
| Distributed By | HTE Technologies, Sensors Incorporated |
|---|---|
| Brand | Murrelektronik |
| Series | MICO |
| Selling Unit | Each |
