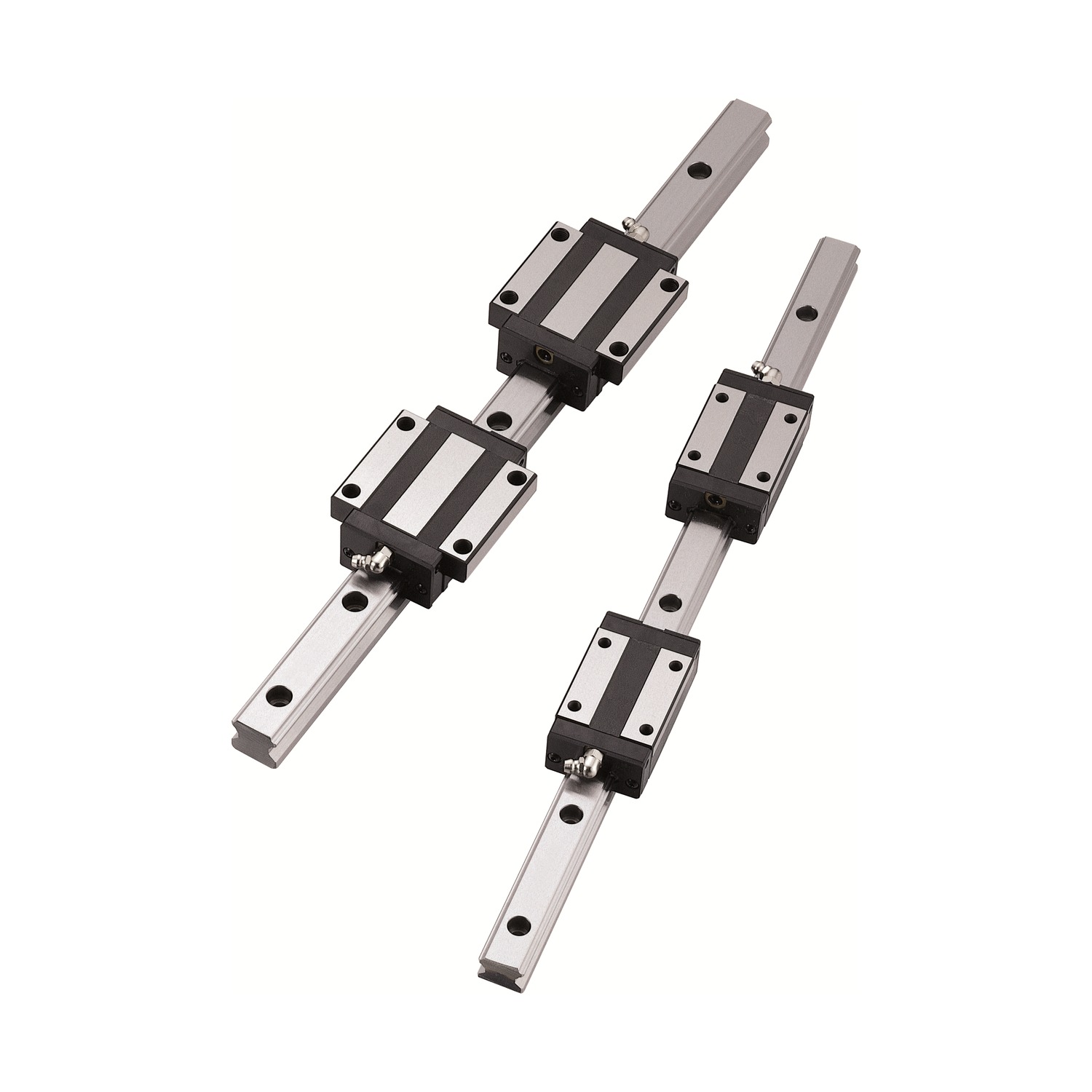

PMI’s Full Ball, Heavy Load Type – MSA Series is engineered with a low friction coefficient enabling smooth motion under strenuous loads.

• Carriage Sizes: 15-65 mm
• Carriage Types: A, E, S, LA, LE, LS
• Preload: FC, F0, F1

PMI’s Full Ball, Heavy Load Type – MSA Series is engineered with a low friction coefficient enabling smooth motion under strenuous loads. The frictional resistance of a linear guide is only 1/20th to 1/40th of that in a slide guide. All linear bearings come with an easily accessible grease nipple for quick re-lubrication thus maintaining low frictional resistance while improving accuracy. These anti-friction bearings allow for high repeatability and positioning to sub-micron accuracies. With low frictional resistance and optimum design, our linear guides are designed to with stand loading in all four directions (i.e. tension, compression and side to side). These linear guides are also easy to install and come in interchangeable options to suit any application requirements.

• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability

• 15 – 65 mm

CARRIAGE TYPES:

1. Heavy Load
   • A: Flange type, mounting from top
   • E: Flange type, mounting from either top or bottom
   • S: Square type
2. Ultra Heavy Load
   • LA: Flange type, mounting from top
   • LE: Flange type, mounting either from top or bottom
   • LS: Square type

PRELOADS:

• FC (Light)
• F0 (Medium)
• F1 (Heavy)

• Counter Bore: R
• Tapped Hole: T
• Customizable lengths and butt joints available

ACCURACY GRADES:

• Normal
• High
• Precision
• Super Precision
• Ultra Precision

Distributed By	Accu Tech USA
Brand	PMI
Series	MSA
Selling Unit	Each
Country of Origin	Taiwan
Color	Gray
Rolling Element	Ball Bearing
Block Style	Flanged & Square
Component Type	Complete Assembly

Technical Data Sheet Product Brochure CAD Drawing Product Drawing
